PSC-12500A-C SLA Charger 12V

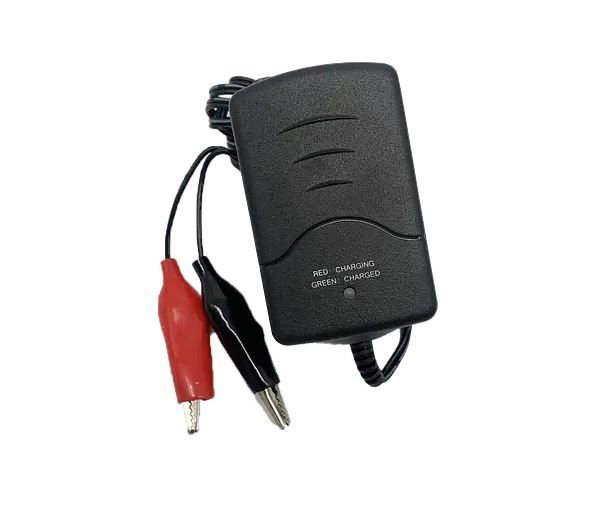

Power-Sonic PSC-12500ACX C-Series Sealed Lead Acid Battery Charger

Wall-Mounted SLA Charger

Designed for use with smaller sealed lead acid batteries, the Power-Sonic PSC-12500ACX Switch Mode Charger is the perfect tool to ensure safe charging and lengthy battery life! This compact charger mounts directly to your wall outlet and is used to charge SLA batteries with capacities between 2 and 5 Ah, quickly restoring them to full power in as little as 4 hours. The intelligent device comes with two unique charging modes; "FAST" charging mode is designed to quickly and efficiently recharge your battery while "FLOAT" charging mode provides a lower voltage that keeps the battery at full power while allowing it to stay plugged in indefinitely. The PSC-12500ACX comes with two LED indicators that show which charging mode it's currently using and whether charging is complete. The SLA charger comes complete with overcharge and reverse polarity protection so you can rest easy knowing it's safe to leave your power source plugged in.

Features:

• Dual rate charger automatically alters output voltage to match battery's needs
• Red and Green LED indicators show current charging mode
• Built-in overcharge and reverse polarity protection
• Wall-mount design
• UL and CE Certified
• DOE Compliant

Technical Specifications:

• Input Voltage: 110-240V, 50-60 Hz
• Output Voltage (Float/Fast): 13.50V / 14.70V
• Output Current: 500mA
• DOE Compliant Power-Sonic Item Code: 12500ACX
• DOE Compliant Power-Sonic Model Code: PSC-12500ACX
• Compatible SLA Batteries:
  • Voltage - 12V
  • Capacity - 2Ah to 5Ah
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Dimensions:
  • Length - 2.24" (57 mm)
  • Width - 1.73" (44 mm)
  • Height - 3.23" (82 mm)
• Weight: 4.94 oz (140 g)
